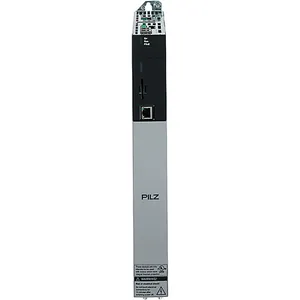

8C000065

Name: 8C000065
Brand: Pilz
Availability: PreOrder

Product type: PMC SC6A062Y/EC 2x 4,5A

Datasheet

Description

Technical data at 3 x 400 V AC: Nominal output current: 2x 4.5 A @ 4kHz / 2x 4.0 A @ 8kHz. Imax: 210% for 2s / 250% for 2s. Apparent power: 2x 3.1 KVA. Without brake resistor. Option: Safety module SY6 (STO and SS1 using FSoE) and EtherCat.

Drive technology
Servo amplifier
PMC SC6, PMC SI6 - servo drives
PMC SC6

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 8C000065.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	3.65 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	45x343x265 mm
EAN code
Product group	7166
cooling type	Built-in fan
gross weight	5250 g
ambient temperature	0 - 45 °C
supply voltage 2 (v)	24 V
number of digital inputs	8
type of supply voltage u2	DC
supply voltage with phases	3×400 VAC, +32/−50 %, 50/60 Hz 3×480 VAC, +10/−58 %, 50/60 Hz
weee classifikation (08/2018)	5 devices (feed size < 50cm)
