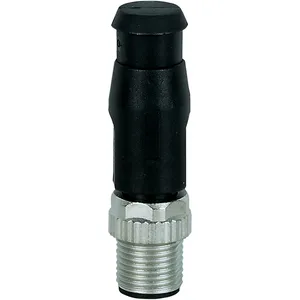

C1000058

Name: C1000058
Brand: Pilz
Availability: PreOrder

Product type: Connector/CA/M12-5SMX/A/TR

Datasheet

Description

Terminating plug with a 120 Ω resistor between Pin 4 and Pin 5. Suitable for the Interface: CANopen.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on C1000058.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.011 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)
EAN code
Product group	7169
approval	cULus Listed
gross weight	12 g
rated current	4 A
housing colour	Black
connector type 1	5-pin M12 male connector
ambient temperature	-30 - 80 °C
approvals for connector 1	UL 94 HB
coding of m12 connector 1	A coded
matl threaded ring conn 1	GD-Zn, Ni
shape of connector type 1	straight
contact surfaces material 1	CuZn, Ni b/Au 0.2 gal.
clearance & creepage dist. to	IEC 60664-1
weee classifikation (08/2018)	5 devices (feed size < 50cm)
pollution degree clear.&creep.	2
