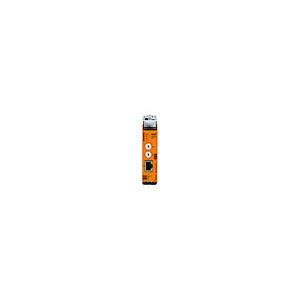

Z9000006

Name: Z9000006
Brand: Pilz
Availability: PreOrder

Product type: KUNBUS-GW SERCOS III

Datasheet

Description

Modular gateway Sercos III, communication module for the base module RevPi Core / RevPi Core 3, a max. of two different communication modules can be connected, housing dimensions (H x W x D): 96 x 22.5 x 110.5 mm, protection type: IP 20, connection to thefieldbus: 2x RJ45, device function: Slave, max. data length input data: 250 Byte, max. data length output data: 250 Byte.

Networks
Fieldbus and Ethernet systems
Revolution Pi
Revolution Pi - Communication modules

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on Z9000006.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.097 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	22.5x96x110.4 mm
EAN code
Product group	7157
approval	CE UKCA
etim version	ETIM-7.0
gross weight	104
eclass version	ECLASS-9.1
eclass reference feature	27242290
weee classifikation (08/2018)	5 devices (feed size < 50cm)
