PULS

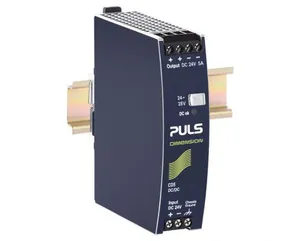

CD5.241

Product type: CD5.241

Standard DC/DC Converter, Input: DC 24V, Output: DC 24-28V, 5A, 120W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on CD5.241.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.425 KG / psc.
Commodity number	85043121
Country of origin	China / Czech Republic
Dimensions (WxHxD)	32x124x102 mm
EAN code	875404001249
Product group	A-Standard
Derating	3W/°C for >+60°C
m_features	24V DC-input; Isolated 24Vdc output; Efficiency up to 90.3%; Width only 32mm; 20% Output power reserves; Full power between -25°C and +60°C; Soft-start function; Minimal inrush current surge; Reverse input polarity protection
Output power	120W
Output current	4.3A at 28V; 5A at 24V
Packaging unit	1 pc
Power reserves	20% Power Boost
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
Adjustment range	24 - 28V
DC Input voltage	DC 24V (-25%/+35%)
E classification	eClass 5.1 27242213; eClass 6.x 27049005; eClass 7.x 27049005; eClass 8.0 27210901; eClass 9.0 27210901; ETIM 4.0 EC002542; ETIM 5.0 EC002046
Efficiency, typ.	90.3%
Connection method	Screw terminals
Power losses, typ.	12.9W 12.9W
Output current range	5 - 4.3A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	1178000h
Ripple and noise voltage max.	50mVpp
Weight per unit (excl. packaging)	425g
