PULS

CD5.242

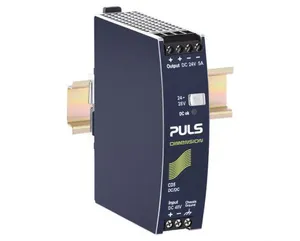

Product type: CD5.242

Standard DC/DC Converter, Input: DC 48V, Output: DC 24-28V, 5A, 120W

Contact Person
Thomas Hoffmann
+49 3091508245
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on CD5.242.
  • ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.425 KG / psc.
Commodity number85043121
Country of originChina / Czech Republic
Dimensions (WxHxD)32x124x102 mm
EAN code875404001263
Product groupA-Standard
Derating3W/°C for >+60°C
m_features48V DC-input; Isolated 24Vdc output; Efficiency up to 90.3%; Width only 32mm; 20% Output power reserves; Full power between -25°C and +60°C; Soft-start function; Minimal inrush current surge; Reverse input polarity protection
Output power120W
Output current4.3A at 28V; 5A at 24V
Packaging unit1 pc
Power reserves20% Power Boost
Product statusLead time on request
Mounting methodDIN rail
Nominal voltage24Vdc
Adjustment range24 - 28V
DC Input voltageDC 48V (± 25%)
E classificationeClass 5.1 27242213; eClass 6.x 27049005; eClass 7.x 27049005; eClass 8.0 27210901; eClass 9.0 27210901; ETIM 4.0 EC002542; ETIM 5.0 EC002046
Efficiency, typ.90.3%
Connection methodScrew terminals
Power losses, typ.12.9W
Output current range5 - 4.3A
Operating temp. range-25°C to 70°C
Warranty period (months)36
MTBF SN 29500 @ 40°C (h)951000h
Ripple and noise voltage max.50mVpp
Weight per unit (excl. packaging)425g
