PULS

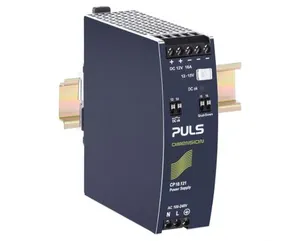

CP10.121

Product type: CP10.121

Standard Power Supply, Input: AC 100-240V, DC 110-150V, Output: DC 12-15V, 16A, 192W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on CP10.121.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.6 KG / psc.
Commodity number	85044082
Country of origin	China
Dimensions (WxHxD)	39x124x117 mm
EAN code	875404002413
Product group	A-Standard
Derating	4.8W/°C for >60°C
m_features	AC 100-240V Wide-range Input; Width only 39mm; Efficiency up to 94.3%; Excellent Partial Load Efficiency; 20% Output Power Reserves; Safe HiccupPLUS Overload Mode; Easy Fuse Breaking due to High Overload Peak Current; Active Power Factor Correction (PFC); Minimal Inrush Current Surge; Full Power Between -25°C and +60°C; Remote ON / OFF Function; DC-OK Relay Contact
DC-OK signal	yes
Output power	192W
Power factor	0.96
Output current	12.8A at 15V; 16A at 12V
Packaging unit	1 pc
Power reserves	20% Power Boost
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	12Vdc
AC Input voltage	AC 100 - 240V (-15%/+10%)
Adjustment range	12 - 15V
DC Input voltage	DC 110V - 150V (± 20%)
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	94.3%
Connection method	Screw terminals
Power losses, typ.	11.6W
Harmonic correction	active
Input inrush current	6A / 9A
Output current range	16 - 12.8A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	690000h
Ripple and noise voltage max.	50mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	600g
External input fuse recommendation	B-6A / C-6A
