PULS

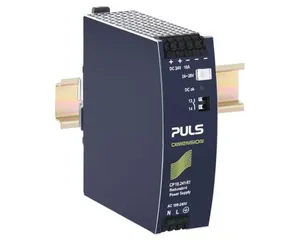

CP10.241-R1

Product type: CP10.241-R1

Standard Redundancy Power Supply, Input: AC 100-240V, DC 110-150V, Output: DC 24V, 10A, 240W, spring-clamp terminals

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on CP10.241-R1.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.6 KG / psc.
Commodity number	85044082
Country of origin	China / Czech Republic
Dimensions (WxHxD)	39x124x117 mm
EAN code	875404002758
Product group	A-Standard
Derating	6W/°C for >+60°C
m_features	AC 100-240V Wide-range input; Width only 39mm; Built-in decoupling mosfet for 1+1 and n+1 redundancy; Efficiency up to 94.7%; 20% Output power reserves; Safe Hiccup PLUS overload mode; Easy fuse breaking – 3 times nominal current for 12ms; Active power factor correction (PFC); Minimal inrush current surge; Full power between -25°C and +60°C; DC-OK relay contact; Current sharing feature included
DC-OK signal	yes
Output power	240W
Power factor	0.97
Output current	10A at 24V
Packaging unit	1 pc
Power reserves	20% Power Boost
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
AC Input voltage	AC 100 - 240V (-15%/+10%)
Adjustment range	24V
DC Input voltage	DC 110V - 150V (± 20%)
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	94.7%
Connection method	Spring clamps
Power losses, typ.	13.4W
Harmonic correction	active
Input inrush current	6A / 9A
Output current range	10A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	641000h
Ripple and noise voltage max.	50mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	600g
External input fuse recommendation	B-6A / C-6A
