PULS

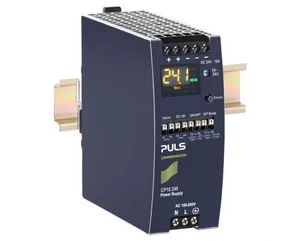

CP10.248

Product type: CP10.248

Standard Power Supply, Input: AC 100-240V, DC 110-150V, Output: DC 24-28V, 10A, 240W with built-in monitoring and diagnosis display

Contact Person
Thomas Hoffmann
+49 3091508245
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on CP10.248.
  • ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.675 KG / psc.
Commodity number85044082
Country of originChina / Czech Republic
Dimensions (WxHxD)48x124x127 mm
EAN code875404003502
Product groupA-Standard
Derating6W/°C for +60 to +70°C; 15W/1000m for altitudes >2000m
m_featuresAC 100-240V wide-range input; Width only 48mm; Display for condition monitoring and easy analysis of power errors; Efficiency up to 95.2%; 20% output power reserves; Easy Fuse Breaking – 3 times nominal current for 12ms; Safe Hiccup PLUS Overload Mode; Full power between -25°C and +60°C; DC-OK relay contact; ALARM relay contact; Remote ON/OFF functionality; Current sharing feature for parallel use
DC-OK signalyes
Output power240W
Power factor0.97
Output current8.6A at 28V; 10A at 24V
Packaging unit1 pc
Power reserves20% power reserves
Product statusLead time on request
Mounting methodDIN rail
Nominal voltage24Vdc
AC Input voltageAC 100 - 240V (-15%/+10%)
Adjustment range24 - 28V
DC Input voltageDC 110V - 115V (± 20%)
E classificationeClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.95.2%
Connection methodScrew terminals
Power losses, typ.12.1W
Input inrush current6A / 9A
Output current range10 - 8.6A
Operating temp. range-25°C to 70°C
Warranty period (months)36
Ripple and noise voltage max.50mVpp
Input inrush current limitationactive
Weight per unit (excl. packaging)675g
External input fuse recommendationB-10A / C-10A
