PULS

CP20.241-R2

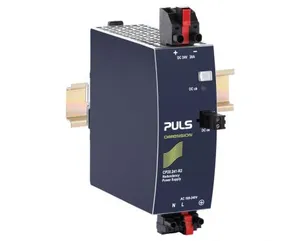

Product type: CP20.241-R2

Standard Redundancy Power Supply, Input: AC 100-240V, DC 110-150V, Output: DC 24V, 20A, 480W, plug connector

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on CP20.241-R2.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.85 KG / psc.
Commodity number	85044082
Country of origin	China / Czech Republic
Dimensions (WxHxD)	48x124x127 mm
EAN code	875404002611
Product group	A-Standard
Derating	12W/°C for >+60°C
m_features	AC 100-240V Wide-range input; Width only 48mm; Built-in decoupling mosfet for 1+1 and n+1 redundancy; Efficiency up to 95.2%; 20% Output power reserves; Safe Hiccup PLUS overload mode; Easy fuse breaking – 3 times nominal current for 12ms; Active power factor correction (PFC); Minimal inrush current surge; Full power between -40°C and +60°C; DC-OK relay contact; Current sharing feature included
DC-OK signal	yes
Output power	480W
Power factor	0.95
Output current	20A at 24V
Packaging unit	1 pc
Power reserves	20% Power Boost
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
AC Input voltage	AC 100 - 240V (-15%/+10%)
Adjustment range	24V
DC Input voltage	DC 110V - 150V (± 20%)
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	95.2%
Connection method	Plug connector
Power losses, typ.	24.2W
Harmonic correction	active
Input inrush current	10A / 4.5A
Output current range	20A
Operating temp. range	-40°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	543000h
Ripple and noise voltage max.	50mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	850g
External input fuse recommendation	B-10A / C-10A
