PULS

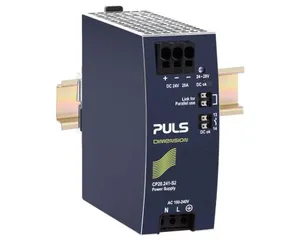

CP20.241-S2

Product type: CP20.241-S2

Same as CP20.241 but with push-in terminals

Contact Person
Thomas Hoffmann
+49 3091508245
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on CP20.241-S2.
  • ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.83 KG / psc.
Commodity number85044082
Country of originCzech Republic
Dimensions (WxHxD)48x124x127 mm
EAN code875404002765
Product groupA-Standard
Derating12W/°C for >60°C
m_featuresAC 100-240V Wide-range Input; Width only 48mm; Efficiency up to 95.6%; Excellent Partial Load Efficiency; 20% Output Power Reserves; Easy Fuse Breaking – 3 times nominal current for 12ms; Safe Hiccup PLUS Overload Mode; Active Power Factor Correction (PFC); Minimal Inrush Current Surge; Full Power Between -25°C and +60°C; DC-OK Relay Contact; Current Sharing Feature for Parallel User; Push-in Terminals
DC-OK signalyes
Output power480W
Power factor0.98
Output current17.1A at 28V; 20A at 24V
Packaging unit1 pc
Power reserves20% Power Boost
Product statusLead time on request
Mounting methodDIN rail
Nominal voltage24Vdc
AC Input voltageAC 100 - 240V (-15%/+10%)
Adjustment range24 - 28V
DC Input voltageDC 110V - 150V (± 20%)
E classificationeClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.95.6%
Connection methodPush-in clamps
Power losses, typ.22.1W
Harmonic correctionactive
Input inrush current10A / 4.5A
Output current range20 - 17.1A
Operating temp. range-25°C to 70°C
Warranty period (months)36
MTBF SN 29500 @ 40°C (h)590000h
Ripple and noise voltage max.50mVpp
Input inrush current limitationactive
Weight per unit (excl. packaging)830g
External input fuse recommendationB-10A / C-10A
