PULS

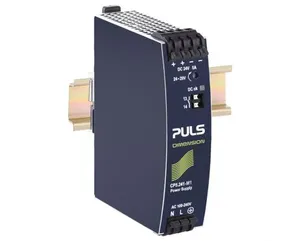

CP5.241-M1

Name: CP5.241-M1
Brand: PULS
Availability: PreOrder

Product type: CP5.241-M1

Standard Power Supply for Medical Applications, Input: AC 100-240V, Output: DC 24-28V, 5A, 120W

Datasheet

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on CP5.241-M1.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.44 KG / psc.
Commodity number	85044082
Country of origin	China / Czech Republic
Dimensions (WxHxD)	32x124x102 mm
EAN code	875404003434
Product group	A-Standard
Derating	6W/°C for >+60°C
m_features	2MOPP safety approved for medical applications according to IEC 60601-1, 3rd edition; EMC tested for medical use according to IEC 60601-1-2, 4th edition; Quick-connect spring-clamp terminals; AC 100-240V wide-range Input; Width only 32mm; Efficiency up to 94.3%; Easy fuse breaking – 3 times nominal current for 12ms; Safe HiccupPLUS overload mode; Active power factor correction (PFC); Minimal inrush current surge; Full power between -25°C and +60°C; DC-OK relay contact
DC-OK signal	yes
Output power	120W
Power factor	0.91
Output current	4.3A at 28V; 5A at 24V
Packaging unit	1 pc
Power reserves	20% Power Boost
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
AC Input voltage	AC 100 - 240V (-15%/+10%)
Adjustment range	24 - 28V
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	94.3%
Housing material	Metal
Connection method	Screw terminals
Power losses, typ.	7.3W
Harmonic correction	active
Input inrush current	5A / 6A
Output current range	5 - 4.3A
Operating temp. range	-25°C to 60°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	667000h
Ripple and noise voltage max.	50mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	440g
External input fuse recommendation	B-6A / C-6A
