PULS

CP5.242

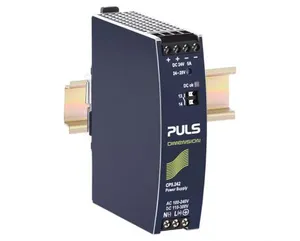

Product type: CP5.242

Standard Power Supply, Input: AC 100-240V, DC 110-300V, Output: DC 24-28V, 5A, 120W

Contact Person
Thomas Hoffmann
+49 3091508245
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on CP5.242.
  • ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.44 KG / psc.
Commodity number85044082
Country of originCzech Republic
Dimensions (WxHxD)32x124x102 mm
EAN code875404002925
Product groupA-Standard
Derating3W/°C for >60°C
m_featuresAC 100-240V Wide-range input; Width only 32mm; Efficiency up to 94.3%; Excellent partial load efficiency; 20% Output power reserves; Easy fuse breaking – 3 times nominal current for 12ms; Safe Hiccup PLUS overload mode; Active power factor correction (PFC); Minimal inrush current surge; Full power between -25°C and +60°C; DC-OK relay contact
DC-OK signalyes
Output power120W
Power factor0.91
Output current4.3A at 28V; 5A at 24V
Packaging unit1 pc
Power reserves20% Power Boost
Product statusLead time on request
Mounting methodDIN rail
Nominal voltage24Vdc
AC Input voltageAC 100 - 240V (-15%/+10%)
Adjustment range24 - 28V
DC Input voltageDC 110V - 300V (± 20%)
E classificationeClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.94.3%
Connection methodScrew terminals
Power losses, typ.7.3W
Harmonic correctionactive
Input inrush current4A / 4A
Output current range5 - 4.3A
Operating temp. range-25°C to 70°C
Warranty period (months)36
MTBF SN 29500 @ 40°C (h)867000h
Ripple and noise voltage max.50mVpp
Input inrush current limitationactive
Weight per unit (excl. packaging)440g
External input fuse recommendationB-6A / C-6A
