PULS

CPS20.361

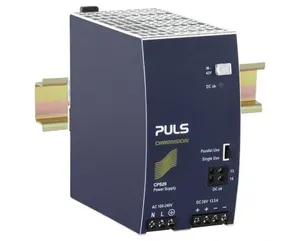

Product type: CPS20.361

Standard Power Supply, Input: AC 100-240V, Output: DC 36-42V, 13.3A, 480W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on CPS20.361.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1 KG / psc.
Commodity number	85044082
Country of origin	China
Dimensions (WxHxD)	65x124x127 mm
EAN code	875404002161
Product group	A-Standard
Derating	12W/°C for >+60°C
m_features	AC 100-240V Wide-range Input; Width only 65mm; Efficiency up to 94.3%; ATEX and IECEx Approved; Excellent Partial Load Efficiency; 20% Output Power Reserves; Safe Hiccup PLUS Overload Mode; Easy Fuse Breaking due to High Overload Current; Active Power Factor Correction (PFC); Minimal Inrush Current Surge; Full Power Between -25°C and +60°C; DC-OK Relay Contact; Current Sharing Feature for Parallel Use
DC-OK signal	yes
Output power	480W
Power factor	0.95
Output current	11.4A at 42V; 13.3A at 36V
Packaging unit	1 pc
Power reserves	20% Power Boost
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	36Vdc
AC Input voltage	AC 100 - 240V (-15%/+10%)
Adjustment range	36 - 42V
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	94.3%
Connection method	Screw terminals
Power losses, typ.	29.0W
Harmonic correction	active
Input inrush current	9A / 7A
Output current range	13.3 - 11.4A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	537000h
Ripple and noise voltage max.	100mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	1000g
External input fuse recommendation	B-10A / C-10A
