PULS

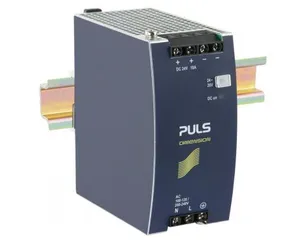

CS10.241

Product type: CS10.241

Standard Power Supply, Input: AC 100-120V/ 200-240V autoselect, Output: DC 24-28V, 10A, 240W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on CS10.241.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.7 KG / psc.
Commodity number	85044082
Country of origin	China
Dimensions (WxHxD)	60x124x117 mm
EAN code	875404000808
Product group	A-Standard
Derating	6W/°C for >+60°C
m_features	AC 100-120 / 200-240V auto-select input; Width only 60mm; Efficiency up to 91.6%; Easy fuse breaking due to high overload peak current; 20% Output power reserves; Full power between -25°C and +60°C; Minimal inrush current surge
Output power	240W
Power factor	0.51
Output current	8.6A at 28V; 10A at 24V
Packaging unit	1 pc
Power reserves	20% Power Boost
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
AC Input voltage	AC 100 - 120 / 200 - 240V (± 10%)
Adjustment range	24 - 28V
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	91.6%
Connection method	Screw terminals
Power losses, typ.	22.0W
Input inrush current	3A / 3A
Output current range	10 - 8.6A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	821000h
Ripple and noise voltage max.	50mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	700g
External input fuse recommendation	B-10A / C-6A
