PULS

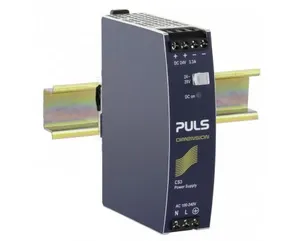

CS3.241

Product type: CS3.241

Standard Power Supply, Input: AC 100-240V, Output: DC 24-28V, 3.3A, 80W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on CS3.241.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.43 KG / psc.
Commodity number	85044082
Country of origin	China
Dimensions (WxHxD)	32x124x102 mm
EAN code	875404001058
Product group	A-Standard
Derating	1.8W/°C for >+60°C
m_features	AC 100-240V Wide-range input; Width only 32mm; NEC Class2 compliant; Efficiency up to 89.8%; Full power between -25°C and +60°C
Output power	80W
Power factor	0.56
Output current	2.7A at 28V; 3.3A at 24V
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
AC Input voltage	AC 100 - 240V (± 10%)
Adjustment range	24 - 28V
DC Input voltage	DC 110V - 300V (-20%/+25%)
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	89.8%
Connection method	Screw terminals
Power losses, typ.	9.1W
Input inrush current	23A / 45A
Output current range	3.3 - 2.7A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	2243000h
Ripple and noise voltage max.	50mVpp
Input inrush current limitation	NTC
Weight per unit (excl. packaging)	430g
External input fuse recommendation	B-10A / C-6A
