PULS

CS5.244

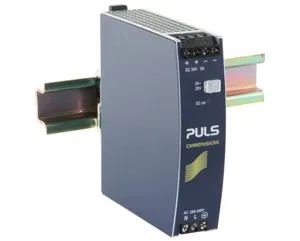

Product type: CS5.244

Standard Power Supply, Input: AC 200-240V, Output: DC 24-28V, 5A, 240W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on CS5.244.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.5 KG / psc.
Commodity number	85044082
Country of origin	China
Dimensions (WxHxD)	32x124x117 mm
EAN code	875404000938
Product group	A-Standard
Derating	3W/°C for >+60°C
m_features	AC 200-240V single-phase input; Width only 32mm; Efficiency up to 90.2%; Easy fuse breaking due to high overload peak current; 20% Output power reserves; Full output power between -10°C and +60°C
Output power	120W
Power factor	0.5
Output current	4.3A at 28V; 5A at 24V
Packaging unit	1 pc
Power reserves	20% Power Boost
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
AC Input voltage	AC 200 - 240V (± 10%)
Adjustment range	24 - 28V
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	90.2%
Connection method	Screw terminals
Power losses, typ.	13.2W
Input inrush current	30A
Output current range	5 - 4.3A
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	940000h
Ripple and noise voltage max.	50mVpp
Input inrush current limitation	NTC
Weight per unit (excl. packaging)	500g
External input fuse recommendation	B-16A / C-10A
