PULS

CT10.481

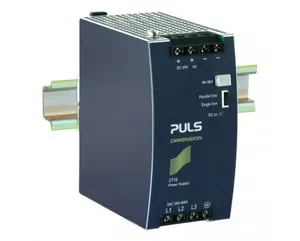

Product type: CT10.481

Standard Power Supply, Input: 3AC 380-480V, Output: DC 48-56V, 5A, 240W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on CT10.481.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.75 KG / psc.
Commodity number	85044082
Country of origin	China
Dimensions (WxHxD)	62x124x117 mm
EAN code	875404001430
Product group	A-Standard
Derating	6W/°C for >+60°C
m_features	380-480V Wide-range input and passive PFC; Efficiency up to 92.9%; Negligibly low input inrush current; 20% Power reserves can be used continuously up to +45°C; Full output power between -25 and +60°C; Adjustable to parallel mode for load sharing
Output power	240W
Power factor	0.53
Output current	4.3A at 56V; 5A at 48V
Packaging unit	1 pc
Power reserves	20% Power Boost
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	48Vdc
AC Input voltage	AC 380 - 480V (-15%/+20%)
Adjustment range	48 - 56V
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	92.8%
Connection method	Screw terminals
Power losses, typ.	18.6W 18.6W
Harmonic correction	active
Input inrush current	4A / 4A
Output current range	5 - 4.3A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	1051000h
Ripple and noise voltage max.	100mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	750g
External input fuse recommendation	B-6A / C-3A
