PULS

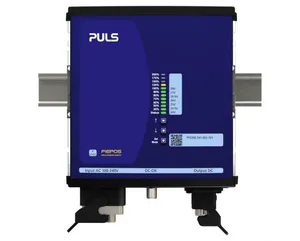

FPS300.241-002-101

Product type: FPS300.241-002-101

Input: 1AC 100-240V, Output: DC 24-28V, 1 output, 300W, DC-OK, IN: HAN Q4/2 OUT: HAN Q4/0, IP65/67

Contact Person
Thomas Hoffmann
+49 3091508245
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on FPS300.241-002-101.
  • ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight1.2 KG / psc.
Commodity number85044082
Country of originCzech Republic
Dimensions (WxHxD)182x183x59 mm
EAN code875404003731
Product groupA-Standard
Derating10W/°C for +55 to +70°C
m_featuresIP 65/67 degree of protection; 360W continuously up to +45°C; 600W peak 5s; 100-240V wide-range input; 95.6% full load and excellent partial load efficiencies; DIN rail mounting possible, option “D”; Output connected to PE (PELV); Version without connection to PE on request; Large output capacitors; Not potted; Negligible low input inrush current surge; Full power between -25°C and +55°C; DC-OK relay contact; Input HanQ4/2 / Output HanQ4/0
DC-OK signalyes
Output power300W
Power factor0.97
Output current10.7A at 28V; 12.5A at 24V
Packaging unit1 pc
Power reserves600W (up to 5s)
Product statusLead time on request
Nominal voltage24Vdc
AC Input voltageAC 100 - 240V (-15%/+10%)
Adjustment range24 - 28V
DC Input voltageDC 110V - 300V (± 20%)
E classificationeClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.95.6%
Connection methodInput: HanQ4/2 | Output: HanQ4/0
Power losses, typ.16.2W
Input inrush current3A / 7A
Output current range12.5 - 10.7A
Operating temp. range-25°C to 70°C
Warranty period (months)36
Ripple and noise voltage max.50mVpp
Input inrush current limitationNTC
Weight per unit (excl. packaging)1200g
External input fuse recommendationB-6A / C-6A
