PULS

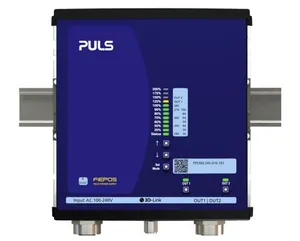

FPS300.245-016-101

Name: FPS300.245-016-101
Brand: PULS
Availability: PreOrder

Product type: FPS300.245-016-101

Input: 1AC 100-240V, Output: DC 24-28V, 2x current limited outputs 1-10A each, 300W, IO-Link, IN: 7/8" OUT: 1x 7/8 - 5pin, IP65/67

Datasheet

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on FPS300.245-016-101.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.2 KG / psc.
Commodity number	85044082
Country of origin	Czech Republic
Dimensions (WxHxD)	181x183x59 mm
EAN code	875404003762
Product group	A-Standard
Derating	6W/°C for +45 to +55°C; 10W/°C for +55 to +70°C; 20W/1000m for altitudes >2000m
m_features	IP65/67 degree of protection; 360W continuously up to +45°C; 600W peak 5s; 1AC 100-240V wide-range input; 2 switchable outputs; 95.6% full load and excellent partial load efficiencies; DIN rail mounting possible, option “D”; Output connected to PE (PELV); Version without connection to PE on request; Large output capacitors; Not potted; Negligible low input inrush current surge; Full power between -25°C and +55°C; IO-Link; Input 7/8" - 3pin / Output 1x 7/8" - 5pin
Output power	300W
Power factor	0.97
Output current	10.7A at 28V; 12.5A at 24V
Packaging unit	1 pc
Power reserves	600W (up to 5s)
Product status	Lead time on request
Nominal voltage	24Vdc
AC Input voltage	AC 100 - 240V (-15%/+10%)
Adjustment range	24 - 28V
DC Input voltage	DC 110V - 300V (± 20%)
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	95.7%
Connection method	Input: 7/8" 3pin \| Output: 7/8" 5pin
Power losses, typ.	13.5W
Input inrush current	2.6A / 6A
Output current range	12.5 - 10.7A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	384000h
Ripple and noise voltage max.	50mVpp
Input inrush current limitation	NTC
Weight per unit (excl. packaging)	1200g
External input fuse recommendation	B-6A / C-6A
