PULS

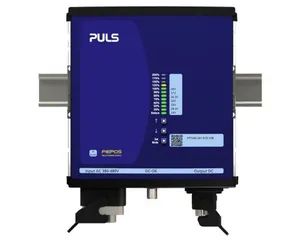

FPT500.241-010-108

Name: FPT500.241-010-108
Brand: PULS
Availability: PreOrder

Product type: FPT500.241-010-108

Input: 3AC 380-480V, Output: DC 24-28V, 1 output, 500W, DC-OK, IN: HAN Q4/2 OUT: HAN Q2/0, IP65/67

Datasheet

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on FPT500.241-010-108.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.2 KG / psc.
Commodity number	85044082
Country of origin	Czech Republic
Dimensions (WxHxD)	181x183x59 mm
EAN code	875404004110
Product group	A-Standard
Derating	10W/°C for +45 to +70°C; 33W/1000m for altitudes >2000m
m_features	IP65/67 degree of protection; 600W continuously up to +45°C; 1000W peak 5s; 3AC 380-480V wide-range input; 95.6% full load and excellent partial load efficiencies; DIN rail mounting possible, option “D”; Output connected to PE; Version without connection to PE on request; Large output capacitors; Not potted; Negligible low input inrush current surge; Full power between -25°C and +55°C; DC-OK relay contact; Input HanQ4/2 / Output HanQ2/0
DC-OK signal	yes
Output power	500W
Power factor	0.95
Output current	17.9A at 28V; 20.8A at 24V
Packaging unit	1 pc
Power reserves	1000W (up to 5s)
Product status	Lead time on request
Nominal voltage	24Vdc
AC Input voltage	AC 380 - 480V (± 15%)
Adjustment range	24 - 28V
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	95.6%
Connection method	Input: HanQ4/2 \| Output: HanQ2/0
Power losses, typ.	23W
Input inrush current	1.9A / 1.8A
Output current range	20.8 - 17.9A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	290000h
Ripple and noise voltage max.	100mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	1200g
External input fuse recommendation	B-6A / C-6A
