PULS

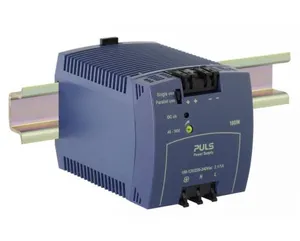

ML100.105

Product type: ML100.105

Standard Power Supply, Input: AC 100-120V/ 200-240V autoselect, DC 290V, Output: DC 48-56V, 2.1A, 100W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on ML100.105.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.36 KG / psc.
Commodity number	85044082
Country of origin	China / Czech Republic
Dimensions (WxHxD)	73x75x103 mm
EAN code	875404000020
Product group	A-Standard
Derating	2.5W/°C for >+60°C
m_features	115 / 230V Auto-select input; Efficiency up to 91.5%; Adjustable to parallel mode for load sharing; Full output power between -10 and +60°C; Quick-connect spring-clamp terminals
Output power	100W
Power factor	0.55
Output current	1.8A at 56V; 2.1A at 48V
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	48Vdc
AC Input voltage	AC 100 - 120 / 220 - 240V (-15%/+10%)
Adjustment range	48 - 56V
DC Input voltage	DC 290V (-25%/+30%)
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	91%
Connection method	Spring clamps
Power losses, typ.	10W
Input inrush current	22A / 37A
Output current range	2.1 - 1.8A
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	500000h
Ripple and noise voltage max.	50mVpp
Input inrush current limitation	NTC
Weight per unit (excl. packaging)	360g
External input fuse recommendation	B-10A / C-6A
