PULS

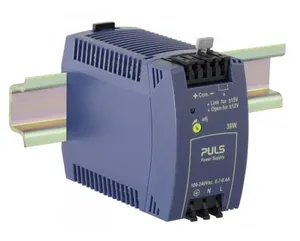

ML30.106

Product type: ML30.106

Standard Power Supply, Input: AC 100-240V, DC 110-300V, Output: DC ±12-15V, 2A, 36W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on ML30.106.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.24 KG / psc.
Commodity number	85044082
Country of origin	China
Dimensions (WxHxD)	45x75x91 mm
EAN code	875404000068
Product group	A-Standard
Derating	1W/°C for >+60°C
m_features	100-240V Wide-range input; Efficiency up to 86%; Dual output; NEC Class 2 listed; Full output power between -10 and +60°C; Quick-connect spring-clamp terminals; Adapter for Wall Mounting included; Output voltage adjustable to DC ±12V (without jumper) or DC ±15V (with jumper)
Output power	36W
Power factor	0.53
Output current	2.5A at 15V; 2.5A at 12V
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	12Vdc
AC Input voltage	AC 100 - 240V (-15%/+10%)
Adjustment range	12 - 15V
DC Input voltage	DC 110V - 300V (-20%/+25%)
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	86%
Connection method	Spring clamps
Power losses, typ.	5.9W
Input inrush current	17A / 35A
Output current range	2.5 - 2.5A
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	600000h
Ripple and noise voltage max.	50mVpp
Input inrush current limitation	NTC
Weight per unit (excl. packaging)	240g
External input fuse recommendation	B-10A / C-6A
