PULS

ML60.241

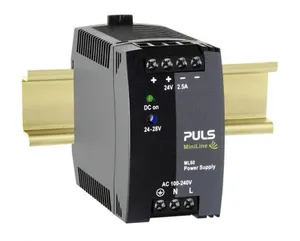

Product type: ML60.241

Standard Power Supply, Input: AC 100-240V, DC 110-300V, Output: DC 24-28V, 2.5A, 60W

Contact Person
Thomas Hoffmann
+49 3091508245
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on ML60.241.
  • ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.25 KG / psc.
Commodity number85044082
Country of originChina
Dimensions (WxHxD)45x75x91 mm
EAN code875404001591
Product groupA-Standard
Derating1.5W/°C for >+60°C
m_features100-240V Wide-range input; NEC Class2 compliant; Adjustable output voltage; Efficiency up to 89,7%; Low no-load losses and excellent partial-load efficiency; Compact design, width only 45mm; Full power between -10°C and +60°C; Large international approval package
Output power60W
Power factor0.5
Output current2.1A at 28V; 2.5A at 24V
Packaging unit1 pc
Product statusLead time on request
Mounting methodDIN rail
Nominal voltage24Vdc
AC Input voltageAC 100 - 240V (-15%/+10%)
Adjustment range24 - 28V
DC Input voltageDC 110V - 300V (-20%/+25%)
E classificationeClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.89.7%
Connection methodScrew terminals
Power losses, typ.6.9W
Input inrush current16A / 32A
Output current range2.5 - 2.1A
Warranty period (months)36
MTBF SN 29500 @ 40°C (h)1916000h
Ripple and noise voltage max.50mVpp
Input inrush current limitationNTC
Weight per unit (excl. packaging)250g
External input fuse recommendationB-10A / C-6A
