PULS

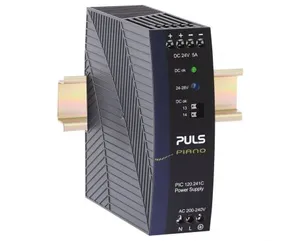

PIC120.241C

Product type: PIC120.241C

Standard Power Supply, Input: AC 200-240V, Output: DC 24-28V, 5A, 120W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on PIC120.241C.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.35 KG / psc.
Commodity number	85044082
Country of origin	China
Dimensions (WxHxD)	39x124x124 mm
EAN code	875404002345
Product group	A-Standard
Derating	3W/°C for +55 to +70°C
m_features	AC 200-240V regional input; Cost optimized without compromising quality or reliability; Width only 39mm; Efficiency up to 90.5%; Low no-load power losses; Full power between -10°C and +55°C; DC-OK relay contact included
DC-OK signal	yes
Output power	120W
Power factor	0.54
Output current	4.3A at 28V; 5A at 24V
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
AC Input voltage	AC 200 - 240V (± 10%)
Adjustment range	24 - 28V
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	90.5%
Connection method	Screw terminals
Power losses, typ.	12.6W
Input inrush current	28A
Output current range	5 - 4.3A
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	1720000h
Ripple and noise voltage max.	100mVpp
Input inrush current limitation	NTC
Weight per unit (excl. packaging)	350g
External input fuse recommendation	B-10A / C-6A
