PULS

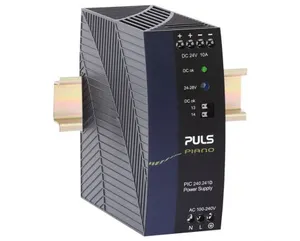

PIC240.241D

Product type: PIC240.241D

Standard Power Supply, Input: AC 100-240V, Output: DC 24-28V, 10A, 240W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on PIC240.241D.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.54 KG / psc.
Commodity number	85044082
Country of origin	China
Dimensions (WxHxD)	49x124x124 mm
EAN code	875404002383
Product group	A-Standard
Derating	6W/°C for >+55°C
m_features	AC 100-240V Wide-range input; Active power factor correction (PFC); Cost optimized without compromising quality or reliability; Width only 49mm; Efficiency up to 95.2%; Full power between -25°C and +55°C; DC-OK relay contact
DC-OK signal	yes
Output power	240W
Power factor	0.93
Output current	8.6A at 28V; 10A at 24V
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
AC Input voltage	AC 100 - 240V (± 10%)
Adjustment range	24 - 28V
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	95.2%
Connection method	Screw terminals
Power losses, typ.	12.1W
Harmonic correction	active
Input inrush current	14A / 26A
Output current range	10 - 8.6A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
Ripple and noise voltage max.	100mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	540g
External input fuse recommendation	B-10A / C-6A
