PULS

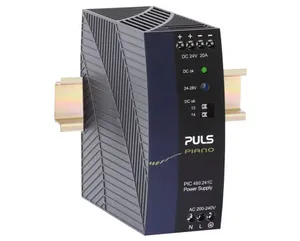

PIC480.241C-C1

Product type: PIC480.241C-C1

Same as PIC480.241C but with conformal coated pc-boards

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on PIC480.241C-C1.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.62 KG / psc.
Commodity number	85044082
Country of origin	Czech Republic
Dimensions (WxHxD)	49x124x124 mm
EAN code	875404003151
Product group	A-Standard
Derating	8W/°C for +55 to +70°C
m_features	AC 100-240V Wide-range input; Cost optimized without compromising quality or reliability; Conformally coated PC-boards; Active power factor correction (PFC); Width only 49mm; Efficiency up to 95.7%; Full power between -25°C and +55°C; DC-OK relay contact
DC-OK signal	yes
Output power	480W
Power factor	0.99
Output current	17.1A at 28V; 20A at 24V
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
AC Input voltage	AC 200 - 240V (± 10%)
Adjustment range	24 - 28V
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	95.7%
Connection method	Screw terminals
Power losses, typ.	21.6W
Input inrush current	26A
Output current range	20 - 17.1A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	482000h
Ripple and noise voltage max.	100mVpp
Input inrush current limitation	NTC
Weight per unit (excl. packaging)	620g
External input fuse recommendation	B-10A / C-6A
