PULS

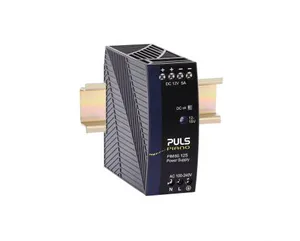

PIM60.125

Product type: PIM60.125

Standard Power Supply, Input: AC 100-240V, Output: DC 12-15V, 5A, 60W, screw terminals, Class I with PE connection

Contact Person
Thomas Hoffmann
+49 3091508245
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on PIM60.125.
  • ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.225 KG / psc.
Commodity number85044082
Country of originChina / Czech Republic
Dimensions (WxHxD)36x90x91 mm
EAN code875404003281
Product groupA-Standard
Derating1.44W/°C for +60 to +70°C
m_featuresAC 100-240V wide range input; NEC Class 2 compliant; Cost optimized without compromising quality or reliability; Width only 36mm; Efficiency up to 90.7%; Low no-load power losses; Full power between -10°C and +60°C; Large screw terminals
DC-OK signalyes
Output power60W
Power factor0.470000
Output current4A at 15V; 5A at 12V
Packaging unit1 pc
Product statusLead time on request
Mounting methodDIN rail
Nominal voltage12Vdc
AC Input voltageAC 100 - 240V (± 10%)
Adjustment range12 - 15V
E classificationeClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.90.7%
Housing materialPolycarbonate
Connection methodScrew terminals
Power losses, typ.6.2W
Input inrush current15A / 36A
Output current range5 - 4A
Operating temp. range-10°C to 70°C
Warranty period (months)36
MTBF SN 29500 @ 40°C (h)1673000h
Ripple and noise voltage max.100mVpp
Input inrush current limitationNTC
Weight per unit (excl. packaging)225g
External input fuse recommendationB-6A / C-4A
