PULS

PIM90.245

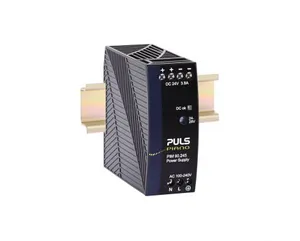

Product type: PIM90.245

Standard Power Supply, Input: AC 100-240V, Output: DC 24-28V, 3.8A, 90W, screw terminals, Class I with PE connection

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on PIM90.245.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.27 KG / psc.
Commodity number	85044082
Country of origin	Czech Republic
Dimensions (WxHxD)	36x90x91 mm
EAN code	875404003083
Product group	A-Standard
Derating	2.4W/°C for +60 to +70°C
m_features	AC 100-240V wide-range input; Cost optimized without compromising quality or reliability; Width only 36mm; Efficiency up to 93.8%; Low no-load power losses; Full power between -10°C and +60°C; Large screw terminals
DC-OK signal	yes
Output power	90W
Power factor	0.45
Output current	3.2A at 28V; 3.8A at 24V
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
AC Input voltage	AC 100 - 240V (± 10%)
Adjustment range	24 - 28V
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	93.8%
Connection method	Screw terminals
Power losses, typ.	7.9W 6W
Input inrush current	18A / 40A
Output current range	3.8 - 3.2A
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	1 507 000h
Ripple and noise voltage max.	100mVpp
Input inrush current limitation	NTC
Weight per unit (excl. packaging)	270g
External input fuse recommendation	B-6A / C-4A
