PULS

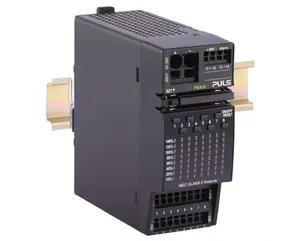

PISA-B-8CL2-B4

Product type: PISA-B-8CL2-B4

Standard Electronic Fuse Module, Input: DC 24V, Output: 8x3.75A, fulfills NEC CLASS 2 power source requirements, digital coded individual signalling

Contact Person
Thomas Hoffmann
+49 3091508245
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on PISA-B-8CL2-B4.
  • ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.37 KG / psc.
Commodity number85363010
Country of originCzech Republic
Dimensions (WxHxD)52x124x130 mm
EAN code875404003847
Product groupA-Standard
m_featuresEight current controlled outputs; NEC Class 2 compliant; Adaptive voltage-dependent current limitation for maximal output power according to NEC Class 2; Selective tripping of overloaded channels; Compatible even with large capacitive loads; Output currents displayed live on LED matrix; Remote reset or reset via pushbutton; Digital coded alarm signal for tripped channels; Parameter settings can be locked by PIN-code; ON/OFF feature for each individual output; Easy wiring - distribution terminals for negative pole
Packaging unit1 pc
Product statusLead time on request
Mounting methodDIN rail
DC Input voltageDC 19.2V - 30V
E classificationeClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Housing materialMetal
Connection methodPush-in clamps
Power losses, typ.7W
No-load losses, typ.1W
Operating temp. range-25°C to 70°C
Turn-on delay of outputs750ms
Warranty period (months)36
DC Input current at no load, typ.35mA
Weight per unit (excl. packaging)370g
Output current (sum of all outputs)30A
Input voltage required to switch on the outputs, typ.19Vdc
