PULS

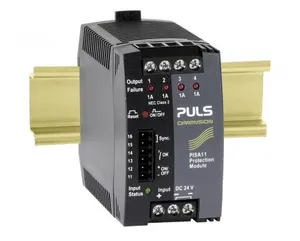

PISA11.401

Product type: PISA11.401

Standard Electronic Fuse Module, Input: DC 24V, Output: 4x1A

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on PISA11.401.
  • ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.12 KG / psc.
Commodity number85363010
Country of originChina
Dimensions (WxHxD)45x75x91 mm
EAN code875404001751
Product groupD-non-standard
m_featuresOne input and four current controlled outputs; NEC Class2 compliant; Ensures sufficient supply voltage for critical loads even in the event of a fault; Protects small cable sizes against overload; Hassle-free turn-on of loads with large input capacitors; Wide temperature range between -25°C and +70°C; On/Off function of outputs; Compact design, width only 45mm; Remote monitoring and control function
Output current1A 1A 1A 1A
Packaging unit1 pc
Product statusLead time on request
Mounting methodDIN rail
Adjustment range24 - 28V
DC Input voltageDC 18V - 30V
E classificationeClass 5.1 27141116; eClass 6.x 27141116; eClass 7.x 27141116; eClass 8.0 27141116; eClass 9.0 27141116; ETIM 4.0 EC000899; ETIM 5.0 EC000899
Connection methodScrew terminals
No-load losses, typ.1.0W
Operating temp. range-25°C to 70°C
Turn-on delay of outputs270ms
Warranty period (months)36
MTBF SN 29500 @ 40°C (h)2347000h
DC Input current at no load, typ.43mA
Weight per unit (excl. packaging)120g
Output current (sum of all outputs)4A
Output current limitation min./max.9 / 12.7A
Shutdown-times at short circuit, typ.110ms
Input voltage protection level min./max.21 - 21.8Vdc
Input voltage required to switch on the outputs, typ.21.4Vdc
