PULS

POE.8AT-AC1

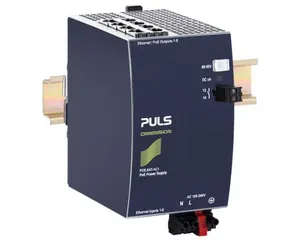

Product type: POE.8AT-AC1

Standard PoE Power Supply, Input: AC 100-240V, DC 110-150V, Output: DC 56V, 8x30W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on POE.8AT-AC1.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.94 KG / psc.
Commodity number	85044082
Country of origin	Czech Republic
Dimensions (WxHxD)	77x128x117 mm
EAN code	875404003076
Product group	A-Standard
m_features	AC 100-240V wide-range input; Width only 77mm; 8x 30W ports (acc. to IEEE 802.3 at); Data transfer rate 1000Mbps; Temperature range -25°C and +70°C; Plug & Play installation and DIN rail mounting
DC-OK signal	yes
Output power	240W
Power factor	0.97
Output current	0.6A at 56V; 0.6A at 48V
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	48Vdc
AC Input voltage	AC 100 - 240V
Adjustment range	48 - 56V
DC Input voltage	DC 110V - 150V (± 20%)
E classification	eClass 10.1 27144327; eClass 11.1 27144327
Efficiency, typ.	93.1%
Housing material	Metal
Connection method	Plug connector, RJ45 Ethernet
Power losses, typ.	17.8W
Harmonic correction	active
Input inrush current	6A / 9A
Output current range	0.6 - 0.6A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
Ripple and noise voltage max.	50mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	940g
External input fuse recommendation	B-6A / C-6A
