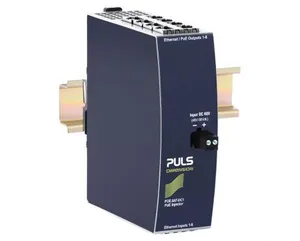

POE.8AT-DC1

Product type: POE.8AT-DC1

Standard PoE Injector, Supply voltage: DC 48V, Output: DC 56V, 8x30W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on POE.8AT-DC1.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.38 KG / psc.
Commodity number	85043121
Country of origin	Czech Republic
Dimensions (WxHxD)	39x128x117 mm
EAN code	875404003144
Product group	A-Standard
m_features	DC 48-56V Input; Efficiency 96.1%; Width only 39mm; 8x 30W ports (acc. to IEEE 802.3 at); Data transfer rate 1000Mbps; Temperature range -45°C and +85°C; Plug & Play installation and DIN rail mounting
Output power	240W
Output current	0.6A at 56V; 0.6A at 48V
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	48Vdc
Adjustment range	48 - 56V
DC Input voltage	DC 48V - 56V
E classification	eClass 10.1 27144327; eClass 11.1 27144327
Efficiency, typ.	97.3%
Housing material	Metal
Connection method	Plug connector, RJ45 Ethernet
Power losses, typ.	6.4W
Output current range	0.6 - 0.6A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
Weight per unit (excl. packaging)	380g
