PULS

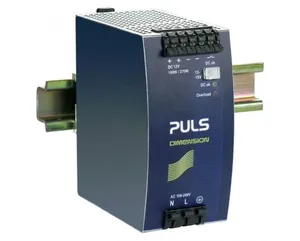

QS10.121

Product type: QS10.121

Standard Power Supply, Input: AC 100-240V, DC 110-150V, Output: DC 12-15V, 15A, 180W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on QS10.121.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.93 KG / psc.
Commodity number	85044082
Country of origin	China
Dimensions (WxHxD)	60x124x117 mm
EAN code	875404000150
Product group	A-Standard
Derating	5W/°C for >+60°C
m_features	100-240V Wide-range input, active PFC; Efficiency up to 91,8%; Negligibly low input inrush current; 50% Power reserves available up to 4s; Full output power between -25°C and +60°C; Spring-clamp terminals, DC-OK contact
DC-OK signal	yes
Output power	180W
Power factor	0.92
Output current	13.5A at 15V; 15A at 12V
Packaging unit	1 pc
Power reserves	50% BonusPower
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	12Vdc
AC Input voltage	AC 100 - 240V (± 15%)
Adjustment range	12 - 15V
DC Input voltage	DC 110V - 150V (-20%/+25%)
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	91.8%
Connection method	Spring clamps
Power losses, typ.	16,1W
Harmonic correction	active
Input inrush current	4A / 7A
Output current range	15 - 13.5A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	631000h
Ripple and noise voltage max.	50mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	930g
External input fuse recommendation	B-6A / C-4A
