PULS

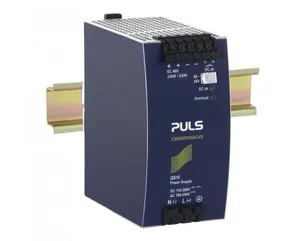

QS10.481-D1

Product type: QS10.481-D1

Same as QS10.481 but with enhanced DC 110-300V DC-Input voltage range

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on QS10.481-D1.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.9 KG / psc.
Commodity number	85043121
Country of origin	Czech Republic
Dimensions (WxHxD)	60x124x117 mm
EAN code	875404001867
Product group	A-Standard
Derating	6W/°C for >+60°C
m_features	Wide AC and DC-Input range; Efficiency up to 92%; Negligibly low input inrush current; 50% Power reserves available up to 4s; Full output power between -25 and +60°C; Spring-clamp terminals, DC-OK contact
DC-OK signal	yes
Output power	240W
Power factor	0.92
Output current	4.3A at 56V; 5A at 48V
Packaging unit	1 pc
Power reserves	50% BonusPower
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	48Vdc
AC Input voltage	AC 100 - 240V (± 15%)
Adjustment range	48 - 56V
DC Input voltage	DC 110V - 300V (-20%/+25%)
E classification	eClass 5.1 27242213; eClass 6.x 27049005; eClass 7.x 27049005; eClass 8.0 27210901; eClass 9.0 27210901; ETIM 4.0 EC002542; ETIM 5.0 EC002046
Efficiency, typ.	92%
Connection method	Spring clamps
Power losses, typ.	20.9W
Harmonic correction	active
Input inrush current	4A / 7A
Output current range	5 - 4.3A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	606000h
Ripple and noise voltage max.	100mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	900g
