PULS

QS40.241

Name: QS40.241
Brand: PULS
Availability: PreOrder

Product type: QS40.241

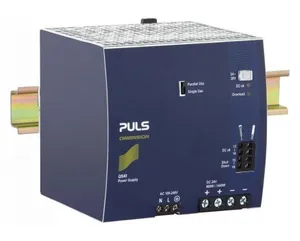

Standard Power Supply, Input: AC 100-240V, Output: DC 24-28V, 40A, 960W

Datasheet

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on QS40.241.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.9 KG / psc.
Commodity number	85044082
Country of origin	China / Czech Republic
Dimensions (WxHxD)	125x124x127 mm
EAN code	875404001966
Product group	A-Standard
Derating	24W/°C for +60 to +70°C
m_features	AC 100-240V wide-range input; Width only 110mm, weight only 1.9kg; 94.6% full load and excellent partial load efficiencies; 50% BonusPower, 1440W for up to 4s; 110A high peak current for 10ms for easy fuse tripping; Safe Hiccup PLUS overload mode; Active power factor correction (PFC); Negligibly low input inrush current; Full power between -25°C and +60°C; Current sharing feature for parallel use; Internal data logging for troubleshooting included; Remote control of output voltage; DC-OK relay contact; Shut-down input; ATEX and IECEx approved
DC-OK signal	yes
Output power	960W
Power factor	0.99
Output current	34.3A at 28V; 40A at 24V
Packaging unit	1 pc
Power reserves	50% BonusPower
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
AC Input voltage	AC 100 - 240V (-15%/+10%)
Adjustment range	24 - 28V
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	94.6%
Connection method	Screw terminals
Power losses, typ.	54.8W
Harmonic correction	active
Input inrush current	17A / 11A
Output current range	40 - 34.3A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	300000h
Ripple and noise voltage max.	100mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	1900g
External input fuse recommendation	B-16A / C-16A
