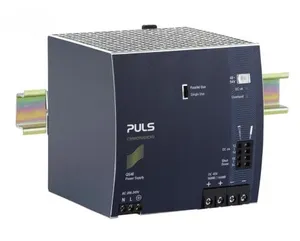

QS40.484
PULS

QS40.484

Product type: QS40.484

Standard Power Supply, Input: AC 200-240V, Output: DC 48-54V, 20A, 960W

Datasheet
Contact Person
Thomas Hoffmann
+49 3091508245
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on QS40.484.
  • ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight1.8 KG / psc.
Commodity number85044082
Country of originCzech Republic
Dimensions (WxHxD)125x124x127 mm
EAN code875404001492
Product groupA-Standard
Derating24W/°C for >+60°C
m_featuresAC 200-240V input; Width only 110mm, Weight only 1.8kg; 95.0% Full load and excellent partial load efficiencies; 50% BonusPower, 1440W for up to 4s; 55A High peak current for 10ms for easy fuse Tripping; Safe Hiccup PLUS overload mode; Active power factor correction (PFC); Negligibly low input inrush current; Full power between -25°C and +60°C; Current sharing feature for parallel use; Internal data logging for troubleshooting included.; DC-OK relay contact; Shut-down input
DC-OK signalyes
Output power960W
Power factor0.96
Output current17.8A at 54V; 20A at 48V
Packaging unit1 pc
Power reserves50% BonusPower
Product statusLead time on request
Mounting methodDIN rail
Nominal voltage48Vdc
AC Input voltageAC 200 - 240V (-15%/+10%)
Adjustment range48 - 54V
E classificationeClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.95%
Connection methodScrew terminals
Power losses, typ.50.5W
Harmonic correctionactive
Input inrush current14A
Output current range20 - 17.8A
Operating temp. range-25°C to 70°C
Warranty period (months)36
MTBF SN 29500 @ 40°C (h)392000h
Ripple and noise voltage max.150mVpp
Input inrush current limitationactive
Weight per unit (excl. packaging)1800g
External input fuse recommendationB-10A / C-8A
