PULS

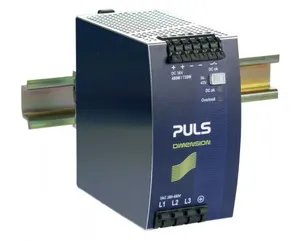

QT20.361

Product type: QT20.361

Standard Power Supply, Input: 3AC 380-480V, Output: DC 36-42V, 13.3A, 480W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on QT20.361.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.87 KG / psc.
Commodity number	85044082
Country of origin	China
Dimensions (WxHxD)	65x124x127 mm
EAN code	875404000235
Product group	A-Standard
Derating	12W/°C for +60 to +70°C
m_features	3AC 380-480V wide-range input; Also specified for 2-phase operation; 94.8% full load and excellent partial load efficiencies; Width only 65mm, weight only 870g; 50% BonusPower, 720W for up to 4s; Active Power Factor Correction PFC; Active filtering of input transients; Full power between -25°C and +60°C; Extremely low input inrush current surge; DC-OK relay contact; Quick-connect spring-clamp terminals
DC-OK signal	yes
Output power	480W
Power factor	0.94
Output current	11.4A at 42V; 13.3A at 36V
Packaging unit	1 pc
Power reserves	50% BonusPower
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	36Vdc
AC Input voltage	AC 380 - 480V (± 15%)
Adjustment range	36 - 42V
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	94.8%
Housing material	Metal
Connection method	Spring clamps
Power losses, typ.	26.3W
Harmonic correction	active
Input inrush current	3A
Output current range	13.3 - 11.4A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	690000h
Ripple and noise voltage max.	100mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	870g
External input fuse recommendation	B-6A / C-3A
