PULS

SLA8.100

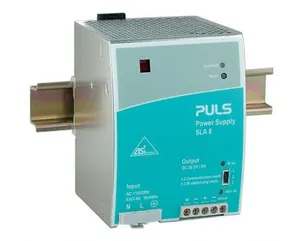

Product type: SLA8.100

Standard AS-Interface Power Supply, Input: AC 100-120V/220-240V, Output: DC-ASi 30.6V, 8A, 244W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on SLA8.100.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.89 KG / psc.
Commodity number	85044082
Country of origin	Czech Republic
Dimensions (WxHxD)	91x124x102 mm
EAN code	875404000563
Product group	C-non-standard
Derating	6W/°C for >+60°C
m_features	115 / 230V Switchable input; Efficiency up to 92%; AS-Interface decoupling network included; Supports IR-Adressing mode; Full output power between -10 and +60°C; Adjustable to FUSE-MODE which switches unit off at overload
Power factor	0.48
Output current	8A at 30.6V
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	30.6Vdc
AC Input voltage	AC 100 - 120 / 220 - 240V (-15%/+10%)
Adjustment range	30.6V
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	92%
Connection method	Screw terminals
Power losses, typ.	21.2W
Output current range	8A
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	869000h
Ripple and noise voltage max.	50mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	890g
