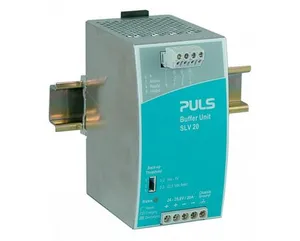

SLV20.200

Product type: SLV20.200

Standard Buffer Module, Supply voltage: 24V, Buffer current: 20A

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on SLV20.200.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.74 KG / psc.
Commodity number	85044082
Country of origin	Czech Republic
Dimensions (WxHxD)	64x124x102 mm
EAN code	875404000655
Product group	C-non-standard
m_features	Buffer unit to bridge 24V brown-outs and black-outs; No service required, utilizes electrolytic capacitors; Can be connected parallel to the load; Various signals for remote monitoring included; Full output power between -10 and +70°C
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
DC Input voltage	DC 24V (-7%/+20%)
E classification	eClass 5.1 27040603; eClass 6.x 27040603; eClass 7.x 27040603; eClass 8.0 27049201; eClass 9.0 27049201; ETIM 4.0 EC000382; ETIM 5.0 EC000382
Connection method	Screw terminals
Warranty period (months)	36
Weight per unit (excl. packaging)	740g
