PULS

UC10.242

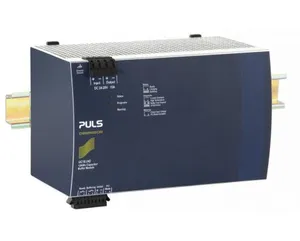

Product type: UC10.242

Standard DC-UPS with Capacitor Storage, , Input: DC 24V, Output: 15A, 12kWs built-in energy storrage

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on UC10.242.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.72 KG / psc.
Commodity number	85044082
Country of origin	Czech Republic
Dimensions (WxHxD)	198x124x117 mm
EAN code	875404001997
Product group	A-Standard
m_features	Built-in capacitors as energy source (EDLC electrochemical double layer capacitors); Wide temperature range between -40°C and +60°C; Typically >10 Years operational lifetime expectancy; Regulated output voltage in buffer mode; No ventilated cabinets required (No generation of hydrogen as VRLA batteries do); Short charging time, unit is rapidly back in ready mode; Output is decoupled from the input to separate load; Circuits into Buffered and Non-buffered Sections; Supports PC-Mode function
Output current	15A; 15A
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc; 22.5Vds
Storage element	Electrochemical double layer capacitors
DC Input voltage	DC 24V
E classification	eClass 5.1 27040603; eClass 6.x 27040603; eClass 7.x 27040603; eClass 8.0 27049201; eClass 9.0 27049201; ETIM 4.0 EC000382; ETIM 5.0 EC000382
Connection method	Spring clamps
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	850000h
Weight per unit (excl. packaging)	1720g
