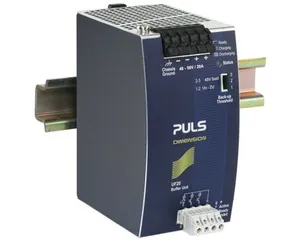

UF20.481

Product type: UF20.481

Standard Buffer Module, Supply voltage: 48V, Buffer current: 20A

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on UF20.481.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.74 KG / psc.
Commodity number	85044082
Country of origin	Czech Republic
Dimensions (WxHxD)	64x124x102 mm
EAN code	875404000778
Product group	A-Standard
m_features	Buffering with electrolytic capacitors instead of lead acid batteries; Buffering of 48V loads; Minimum hold-up time 0.1s at 20A, 0.2s at 10A and longer hold-up time at lower loads; Clear status indication by status LED and signaling terminals; Quick-connect spring-clamp terminals
Output current	20A
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Storage element	Electrolytic capacitors
DC Input voltage	DC 48V (-20%/+25%); 48Vds
E classification	eClass 5.1 27040603; eClass 6.x 27040603; eClass 7.x 27040603; eClass 8.0 27049201; eClass 9.0 27049201; ETIM 4.0 EC000382; ETIM 5.0 EC000382
Connection method	Spring clamps
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	2348000h
Weight per unit (excl. packaging)	740g
