PULS

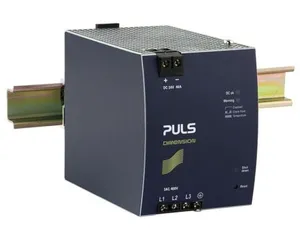

XT40.241

Product type: XT40.241

Standard Semi Regulated Power Supply, Input: 3AC 400V, Output: DC 24V, 40A, 960W

Contact Person
Thomas Hoffmann
+49 3091508245
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on XT40.241.
  • ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight1.4 KG / psc.
Commodity number85044082
Country of originCzech Republic
Dimensions (WxHxD)96x124x159 mm
EAN code875404000884
Product groupB-non-standard
Derating24W/°C for >+60°C
m_featuresAlternative or replacement for AC transformer; Three phase input – DC output; DIN-Rail mountable; Width only 96mm; Efficiency 95.5%; 125% Peak power capability; No input inrush current; Active input transient blocker; Full power between -25°C and +60°C; Easy failure diagnostics; No electrolytic capacitors on input side; Cost effective and robust
Output power960W
Power factor0.93
Output current40A at 24V
Packaging unit1 pc
Power reserves25% power reserves
Product statusLead time on request
Mounting methodDIN rail
Nominal voltage24Vdc
AC Input voltageAC 400V (± 15%)
Adjustment range24V
E classificationeClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.95.5%
Connection methodScrew terminals
Power losses, typ.45.2W
Harmonic correctionactive
Input inrush current2A
Output current range40A
Operating temp. range-25°C to 70°C
Warranty period (months)36
MTBF SN 29500 @ 40°C (h)529000h
Ripple and noise voltage max.1500mVpp
Input inrush current limitationactive
Weight per unit (excl. packaging)1400g
External input fuse recommendationB-6A / C-3A
