PULS

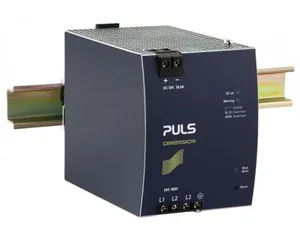

XT40.361

Product type: XT40.361

Standard Semi Regulated Power Supply, Input: 3AC 400V, Output: DC 36V, 26.7A, 960W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on XT40.361.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.4 KG / psc.
Commodity number	85044082
Country of origin	Czech Republic
Dimensions (WxHxD)	96x124x159 mm
EAN code	875404001089
Product group	B-non-standard
Derating	24W/°C for >+60°C
m_features	Alternative or replacement for AC transformer; Three phase input – DC output; DIN-Rail mountable; Width only 96mm; Efficiency 95.5%; 125% Peak power capability; No input inrush current; Active input transient blocker; Full power between -25°C and +60°C; Easy failure diagnostics; No electrolytic capacitors on input side; Cost effective and robust
Output power	960W
Power factor	0.93
Output current	26.6A at 36V
Packaging unit	1 pc
Power reserves	25% power reserves
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	36Vdc
AC Input voltage	AC 400V (± 15%)
Adjustment range	36V
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	95.5%
Connection method	Screw terminals
Power losses, typ.	45.2W
Harmonic correction	active
Input inrush current	2A
Output current range	26.6A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	529000h
Ripple and noise voltage max.	2000mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	1400g
External input fuse recommendation	B-6A / C-3A
