PULS

YR40.241

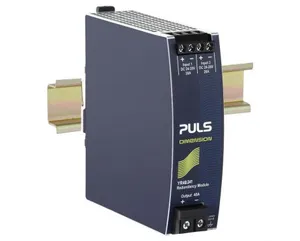

Product type: YR40.241

Standard Redundancy Module, Input: 2x DC 12-28V, Output: 40A, enhanced short circuit current capability

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on YR40.241.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.34 KG / psc.
Commodity number	85044082
Country of origin	China / Czech Republic
Dimensions (WxHxD)	36x124x127 mm
EAN code	875404001720
Product group	A-Standard
m_features	For N+1 and 1+1 redundant systems; Dual input with single output; Suitable for all power supplies; Only 72mV voltage drop at 20A output current; Only 2.15W loss at 20A and 6.3W at 40A output current; 160% (65A) peak load capability; Reverse input polarity protection; Full power between -40°C and +70°C; Width only 36mm; Rugged metal housing; Easy wiring: Distribution terminal for negative pole included
Voltage drop	72mV
Input current	2 x 20A
Output current	40A
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
DC Input voltage	DC 12V - 28V (± 30%)
E classification	eClass 5.1 27242213; eClass 6.x 27049005; eClass 7.x 27049005; eClass 8.0 27210902; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Connection method	Screw terminals
Power losses, typ.	2.2W
No-load losses, typ.	0.7W
Operating temp. range	-40°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	2700000h
Nominal current per input	20A
Output current short circuit max.	65A
Weight per unit (excl. packaging)	340g
