PULS

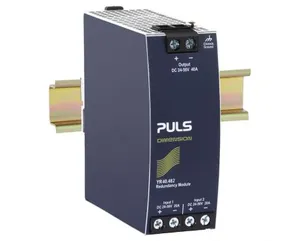

YR40.482

Product type: YR40.482

Standard Redundancy Module, Input: 2x DC 24-56V, Output: 40A

Contact Person
Thomas Hoffmann
+49 3091508245
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on YR40.482.
  • ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.36 KG / psc.
Commodity number85044082
Country of originCzech Republic
Dimensions (WxHxD)46x124x127 mm
EAN code875404002086
Product groupA-Standard
Derating1W/°C for >+60°C
m_featuresFor N+1 and 1+1 redundant systems; Dual input with single output; Suitable for all DIMENSION power supplies; Only 60mV voltage drop at 20A output current; Only 1.8W loss at 20A and 5.4W at 40A output current; 160% (65A) peak load capability; Reverse input polarity protection; Full power between -40°C and +60°C; Width only 46mm; Rugged metal housing; Easy wiring: Distribution terminal for negative pole included
Voltage drop60mV
Input current2 x 20A
Output current40A
Packaging unit1 pc
Product statusLead time on request
Mounting methodDIN rail
DC Input voltageDC 24V - 56V
E classificationeClass 5.1 27242213; eClass 6.x 27049005; eClass 7.x 27049005; eClass 8.0 27210902; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Connection methodScrew terminals
Power losses, typ.1.8W
No-load losses, typ.0.62W
Output current range40A
Operating temp. range-40°C to 70°C
Warranty period (months)36
MTBF SN 29500 @ 40°C (h)4100000h
Nominal current per input20A
Output current short circuit max.45A
Weight per unit (excl. packaging)360g
