PULS

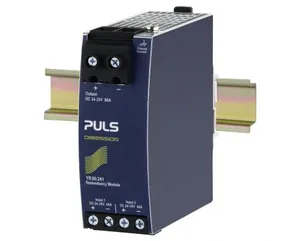

YR80.241

Product type: YR80.241

Standard Redundancy Module, Input: 2x DC 12-28V, Output: 80A, enhanced short circuit current capability

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on YR80.241.
ZWOD Vertriebs und Logistik GmbH carries 305 items from PULS.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.44 KG / psc.
Commodity number	85044082
Country of origin	Czech Republic
Dimensions (WxHxD)	46x124x127 mm
EAN code	875404001638
Product group	A-Standard
m_features	For N+1 and 1+1 redundant systems; Dual input with single output; Suitable for all power supplies; Only 50mV voltage drop at 40A output current; Only 2.7W loss at 10A and 8.3W at 80A output current; 160% (130A) Peak load capability; Reverse input polarity protection; Full power between -40°C and +70°C; Width only 46mm; Rugged metal housing; Easy wiring: Distribution terminal for negative pole included
Voltage drop	49mV
Input current	2 x 40A
Output current	80A
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
DC Input voltage	DC 12V - 28V
E classification	eClass 5.1 27242213; eClass 6.x 27049005; eClass 7.x 27049005; eClass 8.0 27210902; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Connection method	Screw terminals
Power losses, typ.	2.7W
No-load losses, typ.	0.7W
Output current range	80A
Operating temp. range	-40°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	2100000h
Nominal current per input	40A
Output current short circuit max.	130A
Weight per unit (excl. packaging)	440g
