Siemens

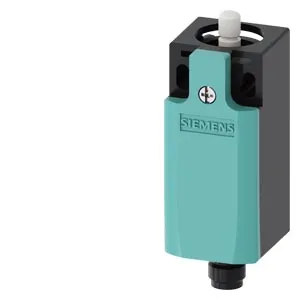

3SE5214-0CC05-1AC5

Name: 3SE5214-0CC05-1AC5
Brand: Siemens
Availability: PreOrder

Product type: 3SE5214-0CC05-1AC5

POS.METAL,M12,SNAP 1NO/1NC,TEFLON

Datasheet

RoHS Compliant

Description

position switch metal enclosure according to EN 50047, 31 mm 1 NO/1 NC quick action contacts with M12 plug, 5-pole pin assignment: Pin1=21, Pin2=22 Pin3=13, Pin4=14, Pin5=PE for maximum 125 V and 4 A with plunger

Automation technology
Industrial controls
Position and safety switches
SIRIUS 3SE5 mechanical position switches
3SE5, metal enclosures
Enclosure width 31 mm acc. to EN 50047

Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 3SE5214-0CC05-1AC5.
ZWOD Vertriebs und Logistik GmbH carries 476025 items from Siemens.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.192 KG / psc.
Commodity number	85365080
Country of origin	DE
Dimensions (WxHxD)	45x42x97 mm
EAN code	4011209862722
Product group	41K
upc	662643851038
group code	R711
metal factor	LA------
product class	A: Standard product which is a stock item could be returned within the returns guidelines/period.
quantity unit	1 Piece
product family	Enclosure width 31 mm acc. to EN 50047
net weight (kg)	0,192 Kg
lkz_fdb/ catalogid	CC-IC10
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	5 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.07.2006
