Siemens

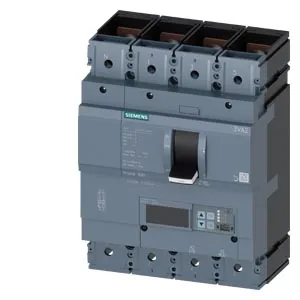

3VA2463-6KQ42-0AA0

Name: 3VA2463-6KQ42-0AA0
Brand: Siemens
Availability: PreOrder

Product type: 3VA2463-6KQ42-0AA0

MCCB_IEC_FS630_630A_4P_85KA_ETU8_LSIG

Datasheet

RoHS Compliant

Description

circuit breaker 3VA2 IEC frame 630 breaking capacity class H Icu=85kA @ 415V 4-pole, line protection ETU860, LSIG, In=630A overload protection Ir=250A...630A short-circuit protection Isd=0.6..9x In, Ii=1.5..9x In N conductor protection adjustable (OFF, up to 100%) gr.-fault prot., can be sw. off Ig=0.2...1 x In= tg=0.05-0.8s nut keeper kit

Energy
Low-voltage - Power distribution
Low-voltage components
Protection, Switching, Measuring and Monitoring Devices
Molded Case Circuit Breakers
SENTRON 3VA Molded Case Circuit Breakers
3VA Molded Case Circuit Breakers, IEC
3VA Molded Case Circuit Breakers up to 1600 A, IEC

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 3VA2463-6KQ42-0AA0.
ZWOD Vertriebs und Logistik GmbH carries 459703 items from Siemens.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	5.7 KG / psc.
Commodity number	85362090
Country of origin	CZ
Dimensions (WxHxD)	210x265x170 mm
EAN code	4042948808351
Product group	12P
upc	804766432149
group code	P360
metal factor	LOA-----
product class	C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
quantity unit	1 Piece
product family	3VA Molded Case Circuit Breakers up to 1600 A, IEC
net weight (kg)	5,700 Kg
lkz_fdb/ catalogid	LV10.1
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : EAR99
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	5 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.04.2014
